V-Ribbed Belt
Ribstar Belts / Ribbed V-Belts (Rubber / Polyurethane)
Rubber type/belt combines the properties of V-Belt's high power transmission capability and the Flat Belt's flexibility.
Polyurethane type/belt combines the features of both V-Belt and Flat Belt.
Characteristics
- Combines high power transmission capacity of V-belt and flexibility of flat belt
- Suitable for high speed, high efficiency drives
- Flexibility allows for smaller pulley diameter and space saving drive design
- Heat and wear resistance
- Minimizes belt vibration
- Comes in rubber and polyurethane
Applications
- Health apparatus
- Printing machines
- Machines tools
- Household appliances
- Office machines
- Electric tools
- Conveyance technology
Brand(s) Available
Download Catalogue
Types
Rubber - J, PK, L, H, M
Polyurethane - JT, JBT, HB
Size Designation
5 J 480 |
5 - Number of Ribs |
| J - Belt Type | |
| 480 - Belt Length (Outer Perimeter in Inches X 10) |
5 PK 1250 |
5 - Number of Ribs |
| PK - Belt Type | |
| 1250 - Belt Length (Outer Perimeter in mm) |
Dimensions
Belt Types |
J |
L |
PK |
H |
M |
 |
|
| Dimensions
(mm) |
a | 2.34 x N | 4.70 x N | 3.56 x N | 1.60 x N | 9.40 x N | |
| b | 3.80 | 7.50 | 5.00 | 2.70 | 14.50 | ||
| p | 2.34 | 4.70 | 3.56 | 1.60 | 9.40 | ||
| θ˚ | 40˚ | 40˚ | 40˚ | 40˚ | 40˚ | ||

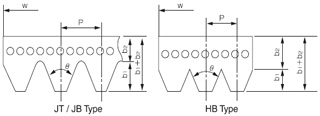

Belt Types |
JT |
JBT |
HB |
||
| Dimensions
(mm) |
w | 2.34 x N | 2.40 x N | 1.60 x N | |
| b1 + b2 | 3.50 | 3.50 | 2.50 | ||
| b1 | 1.80 | 1.80 | 1.00 | ||
| b2 | 1.70 | 1.70 | 1.50 | ||
| p | 2.34 | 2.40 | 1.60 | ||
| θ˚ | 40˚ | 40˚ | 40˚ | ||
N: Number Of Ribs

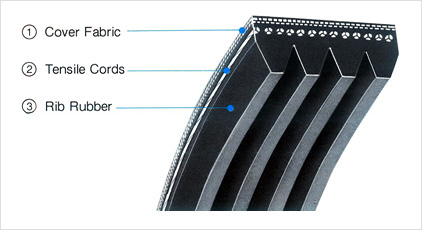

Cross Section
1. Cover Fabric
Wear and crack resistant, flexible bias-cut cotton fabric impregnated with oil and heat resistant rubber compound.
2. Tensile Cords
Pre-stretched strong polyester cords with less stretch and high horsepower capacity.
3. Rib Rubber
Fiber chips reinforced rubber compound is used to provide high friction coefficient, excellent wear resistant and high flexibility.
