Pulley & Bushing

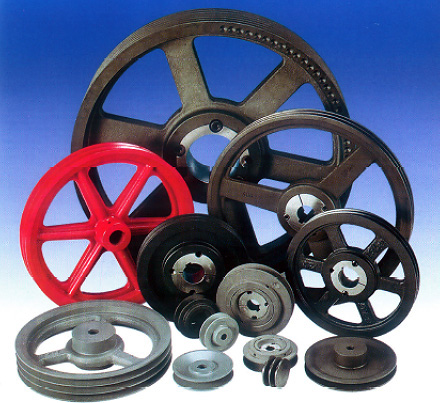

Pulleys are critical and important components of power transmission. It helps to transfer the power. We offer a variety of pulleys like v-belt driven pulleys, taper lock pulleys, taper lock bushing, timing belt pulleys etc.

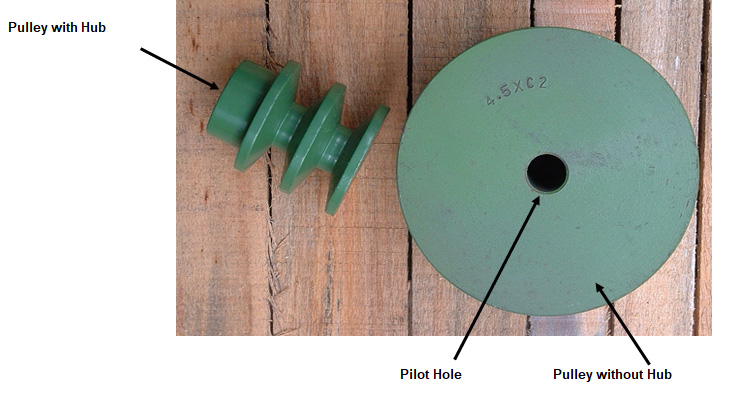

Conventional V-Pulley
For Classical or Conventional V-Belts
Conventional V-Pulleys are available in all groove sizes from 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 grooves, small and large bores both lightweight and heavy duty for multiple industrial applications.
Characteristics
- High tolerance
- High tensile strength
- Optimum performance
- Heavy load support
- Reduced wearing
Applications
- Widely used in all industrial segments like construction and logistics
Brand(s) Available
Download CatalogueTypes
M, A, B, C, D
Material: Cast Iron
Size Designation
4.5 x C2 |
4.5 - Outer Diameter (in inch) |
| C - For Profile C Belt Type / Groove Profile | |
| 2 - No. of Grooves |
DimensionsRefer to Catalogue Download
 |

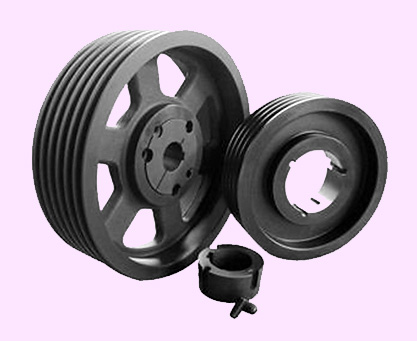

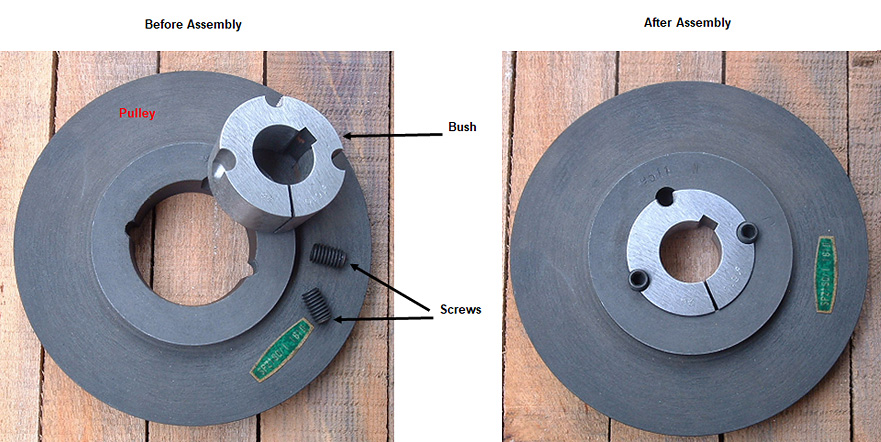

Taper Lock Pulley & Bush
For Narrow / Wedge V-Belts
These Taper Lock Pulleys are suitable for all kinds of power transmission installation of different sizes by using taper lock bushings of different types, in conformance with the needs of the customers.
Characteristics
- Easy to operate and maintain
- Consistent performance
- Wear and tear resistant
- Durable and high temperature resistant
Applications
- Mainly used in transmission systems, these pulleys find application in a number of diverse industries
Brand(s) Available
Types
SPZ, SPA, SPB, SPC
Material: Cast Iron
Size Designation
Pulley
SPZ-1-160 |
SPZ - For SPZ Belt Type / Groove Profile |
| 1 - No. of Groove | |
| 160 - Pitch Diameter (mm) |
Bush
1008-11MM or 1008-1" |
1008 - Bush Number |
| 11 - Bore Size (mm) 1 - Bore Size (inch) |
DimensionsRefer to Catalogue Download
 |

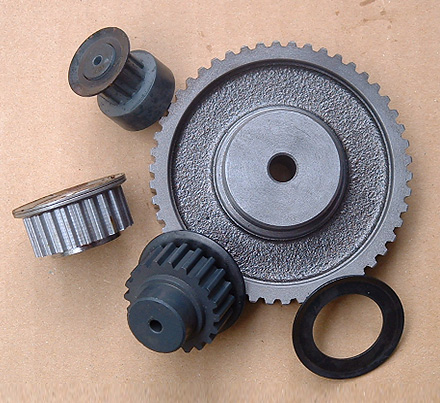

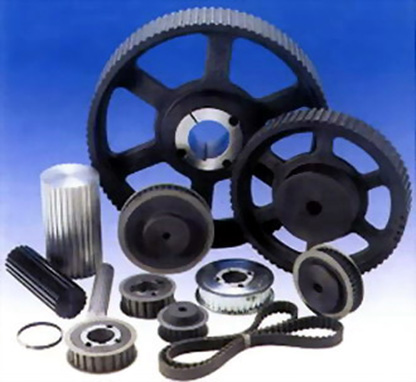

Timing Pulley
For Industrial Timing Belt
Efficient power transmission by timing belt can only be attained by smooth engagement between a high precision belt and accurately machined pulleys.
Characteristics
- Provide accurate, positive engagement for power transmission
- Optional requirements in material, shape and finishing are available on request
Applications
- Printers, Tooling machines, Textile machinery, Industrial robots
Brand(s) Available
Types
Round tooth type / Super torque timing pulley : S2M, S3M, S4.5M, S5M, S8M, S14M
ISO involute tooth / Classical timing pulley: MXL, XL, L, H
Trapezoid tooth / Metric type timing pulley: T5, T10
Material: Stainless Steel, Aluminium, Mild Steel
Size Designation
Round tooth type / Super torque timing pulley
P 28 S5M 0100 B |
P - Pulley |
| 28 - No. of Pulley Teeth | |
| S5M - Belt Type | |
| 0100 - Pulley Width Code [Belt Width (mm) x 10] | |
| B - Pulley Type |
ISO involute tooth timing pulley
38 XL 037 B |
38 - No. of Pulley Teeth |
| XL - Belt Type | |
| 037 - Belt Width (inch x 100) (Note: belt width is in mm for MXL type) |
|
| B - Pulley Type Form |
Add "P" in front of the product code for MXL type (e.g. P26MXL6.4B)
Trapezoid tooth / Metric type timing pulley
P T10 - 15 - 12 |
P - Pulley |
| T10 - Belt Type | |
| 15 - Total Width of Belt Pulley | |
| 12 - No. of Pulley Teeth |
DimensionsRefer to Catalogue Download
Brand(s) Available
Types
Square tooth type / Super torque timing pulley: S2M, S3M, S4.5M, S5M, S8M, S14M
ISO involute tooth / Classical timing pulley: MXL, XL, L, H, XH, XXH
Trapezoid tooth / Metric type timing pulley: T2.5, T5, T10, T20, AT5, AT10
Round tooth type / High torque timing pulley: 3M, 5M, 8M, 14M, 20M
Material: Stainless Steel, Aluminium, Mild Steel
Size Designation
ISO involute tooth / Classical timing pulley
40 XH 300 F |
40 - No. of Pulley Teeth |
| XH - Pitch Code | |
| 300 - Belt Width (inch x 100) | |
| F - Flange |
Trapezoid tooth / Metric type timing pulley
27 - T5 - 10F |
27 - Total Width of Belt Pulley |
| T5 - Pitch Code | |
| 10 - No. of Pulley Teeth | |
| F - Flange |
Round tooth type / High torque timing pulley
30 - 8M - 30F |
30 - No. of Pulley Teeth |
| 8M - Pitch Code | |
| 30 - Belt Width (mm) | |
| F - Flange |
